New Features

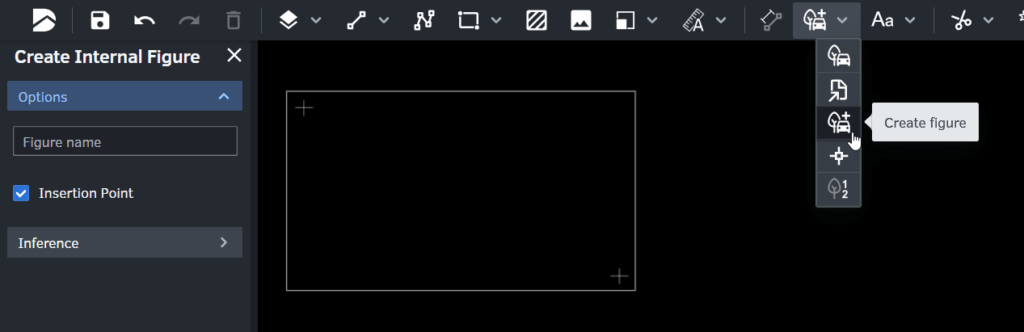

• New Tool – Create Internal Figure
  • Added the ability to create a figure out of entities on a drawing. An internal figure is a figure that belongs only to the drawing it is on, and is not necessarily saved for later use.

Fixes & Enhancements

• Draw & Create:
  • Add support for inference snapping to multi-entities edit and edit circle arc tools.

• AutoCAD Import
  • Added the ability to import angle, linear, radius, and diameter dimensions from AutoCAD DWGs/DXFs. Dimensions will be represented as grouped entities composed of lines, arrows, and text to represent them visually and will not connect the dimension to any geometry that may be related.
  • Enabled exploding of dimensions imported from AutoCAD.
  • Scaled figures, often from AutoCAD imports, should no longer have extra heavy line weights or change line weights when selected and zooming.
• Leaders
  • Added the ability to add a second dogleg to leaders using “Add leader line” mode in the create leader tool.
• Miscellaneous
  • Figure names will now appear in the edit figure panel when a figure is selected. This will make it easier to find out what figure was used on a drawing.
  • Fixed an issue where raster images on a hidden layer would appear in exported PDFs.
  • Minor fixes & enhancements to draw & create tools.
